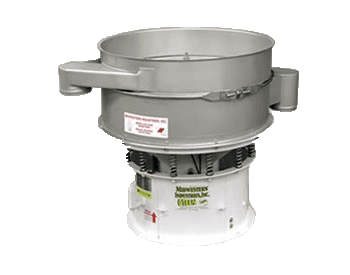

Screener Separator

IMCS Screener Separators provide a dust free mechanical solution to remove fines and a variety of over sizes from most types of plastic and other dry materials. Stackable screens allow for segregation of unwanted material sizes, providing maximum capture of a single or multiple particle size as well. Mechanical screener separators require a minimal footprint and can be fed with an auger or belt conveyor, maximizing a dust free environment.

Screener Separator

Separator Screener Model 1

- Screening Surface: 24"-36" Diameter (1) Piece Replaceable Screen (Additional Screens can be Stacked for Removal of Multiple Particle Sizes)

- Frame: 24"-36" Spiral

- Discharge: Two 6" Diameter Downspouts

- Screen Cover: One Piece with 8" Diameter Inlet and Inspection Port

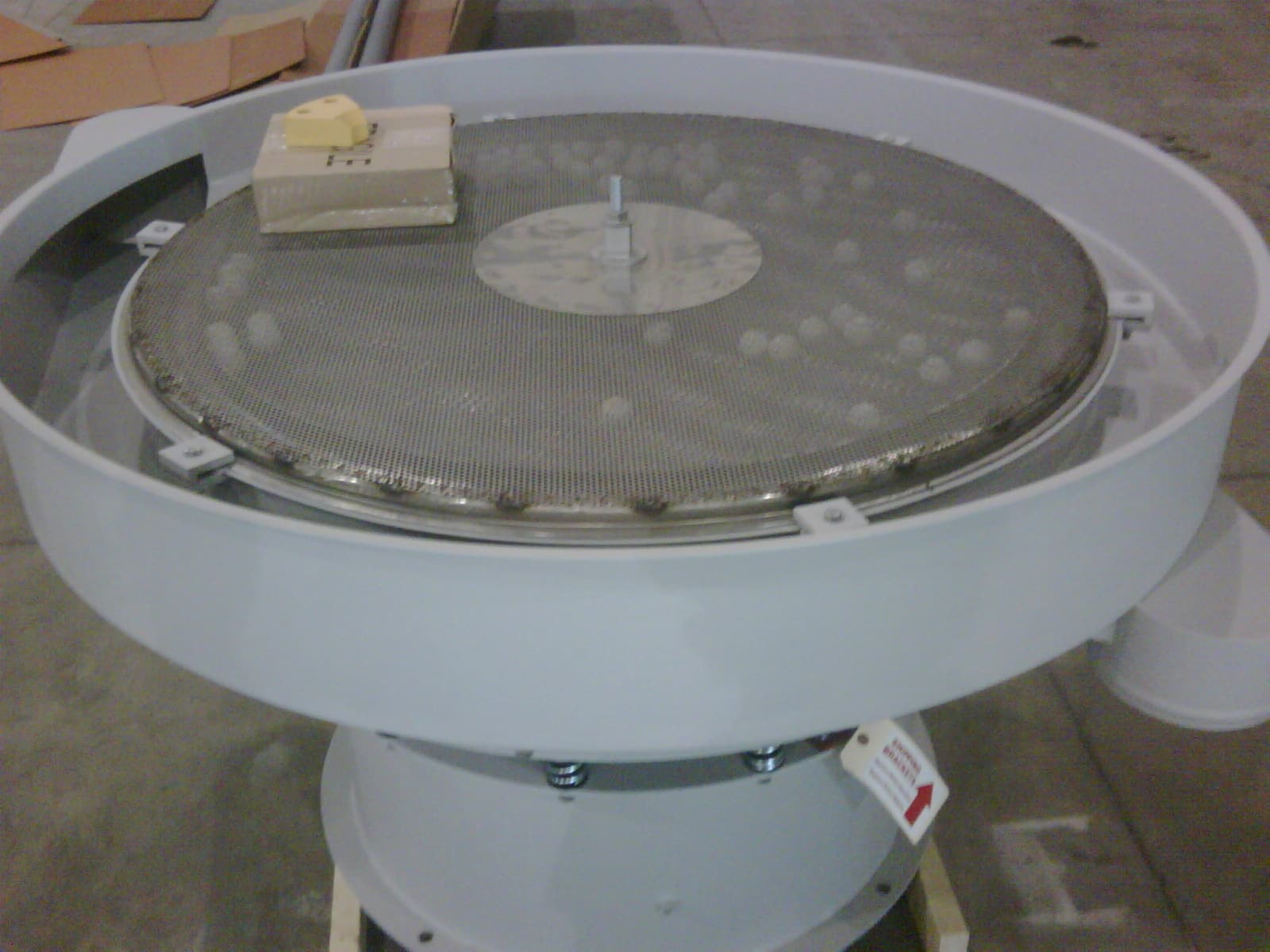

- Ball Tray: 24"-36"

- Riser Stand: 34" to Allow for 56" Discharge from Downspouts

- Drive: 3/4 HP, 3 PH, 480 V, Non-Static Variable Belt and Sheaves

- Construction: CarbonSteel

- Finish: Painted IMCS Light Machine Gray

Separator Screener Model 2

- Screening Surface: 30"-40" Diameter (1) Piece Replaceable Screen (Additional Screens can be Stacked for Removal of Multiple Particle Sizes)

- Frame: 30"-40" Spiral

- Discharge: Two 6" Diameter Downspouts

- Screen Cover: One Piece with 8" Diameter Inlet and Inspection Port

- Ball Tray: 30"-40"

- Riser Stand: 34" to Allow for 56" Discharge from Downspouts

- Drive: 1 HP, 3 PH, 480 V, Non-Static Variable Belt and Sheaves

- Balance Cage: Easy Access, Rapid Adjustment, Amplitude Control and Lead Angle

- Construction: Carbon Steel

- Finish: Painted IMCS Light Machine Gray
