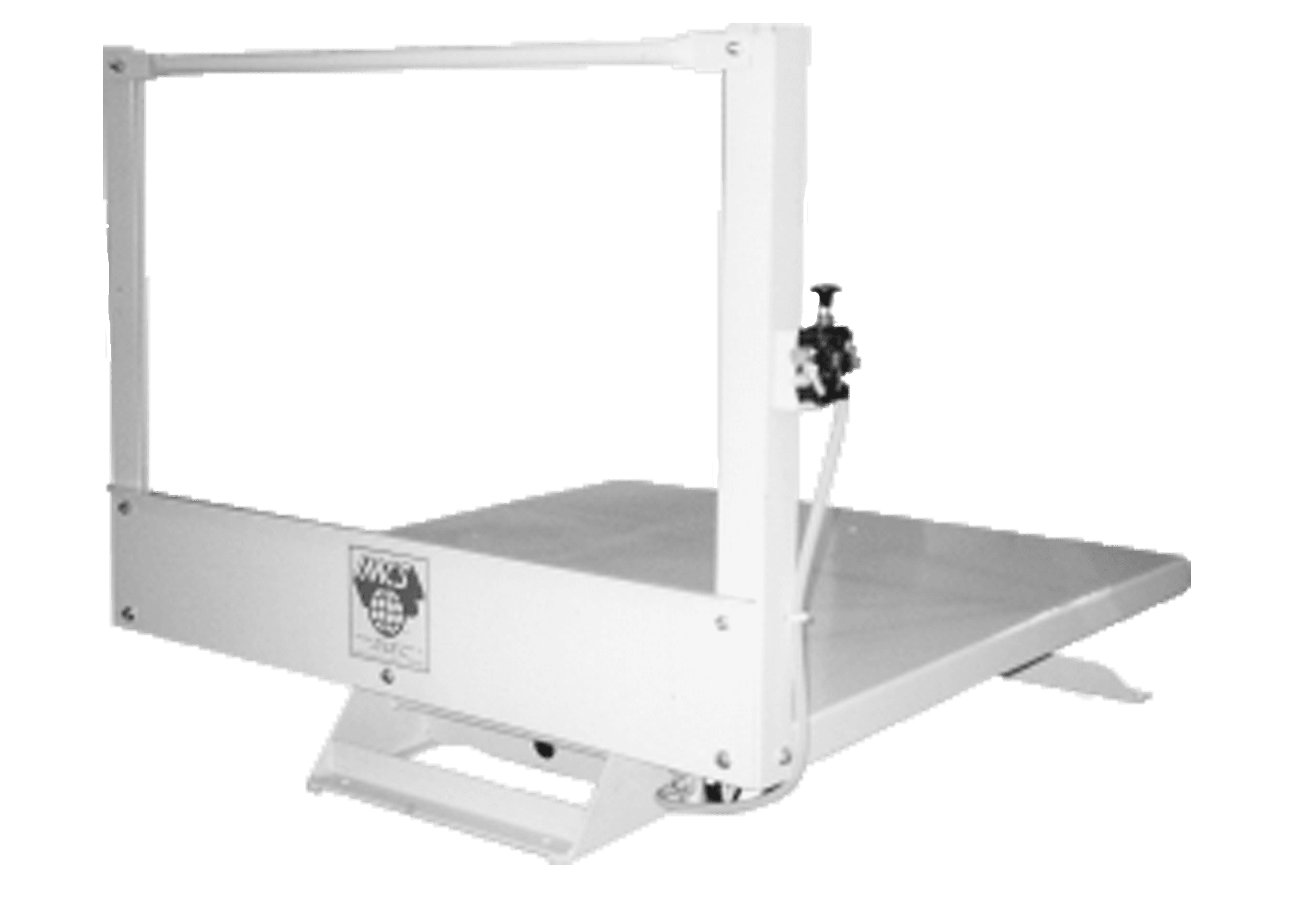

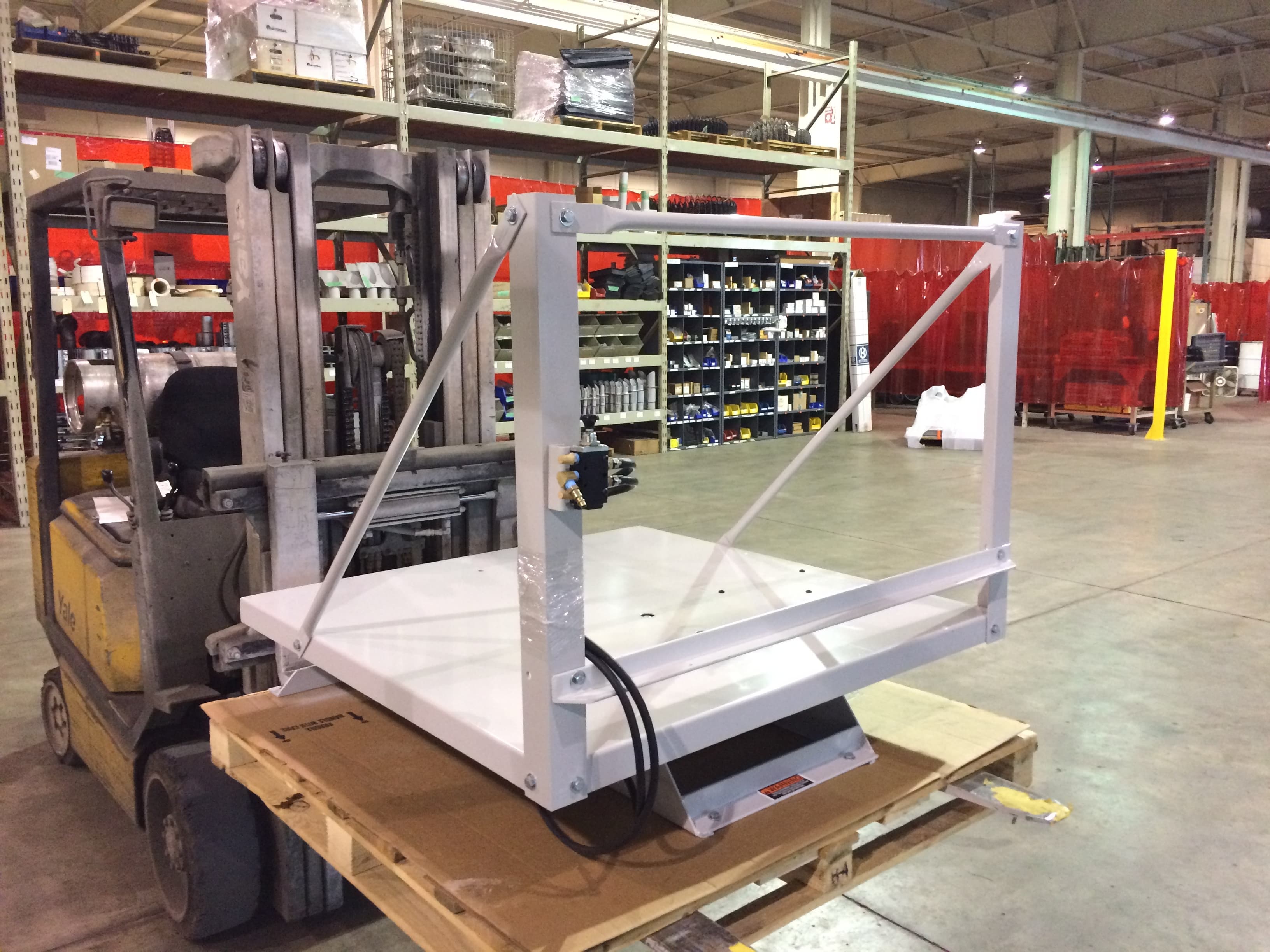

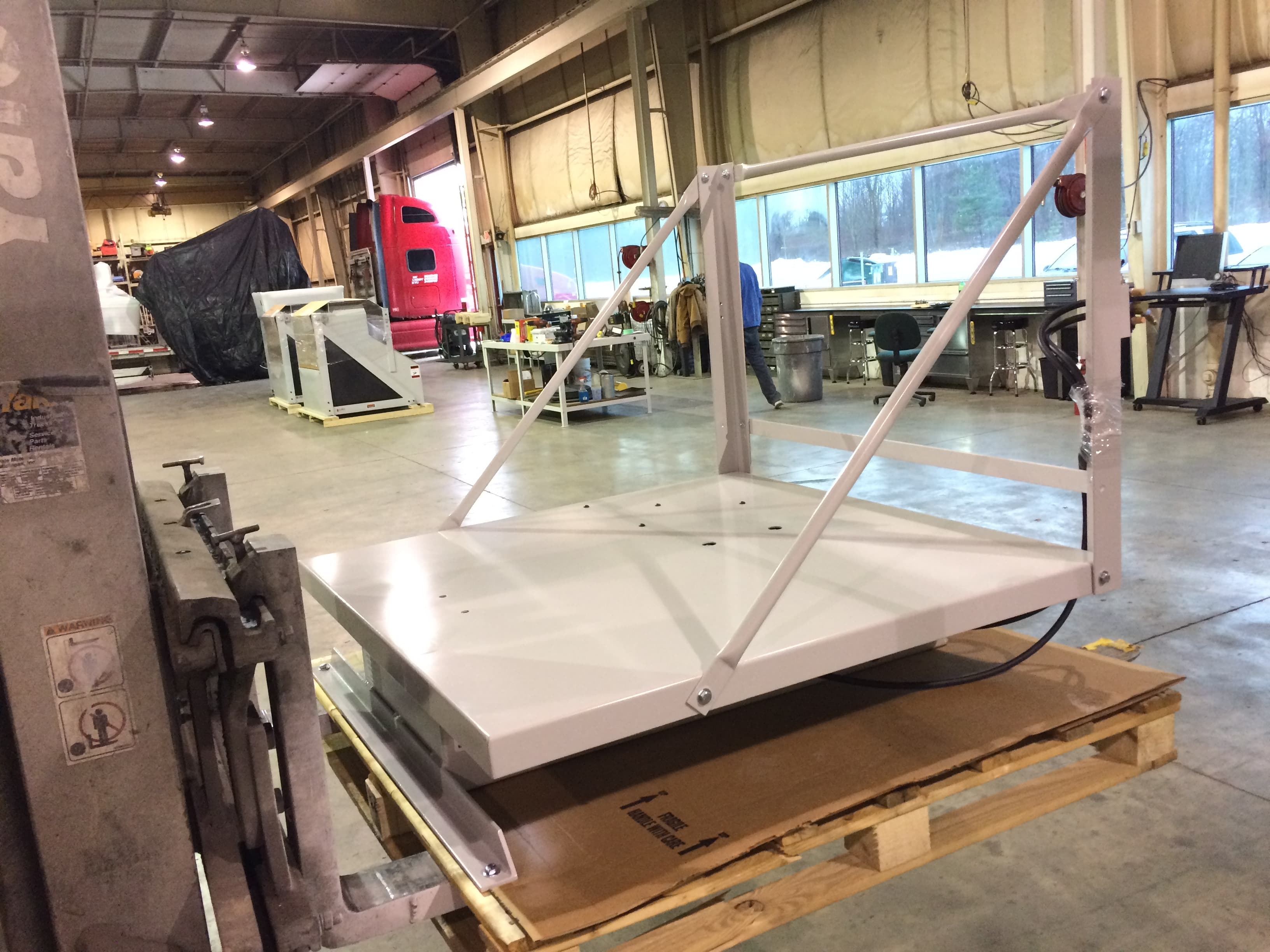

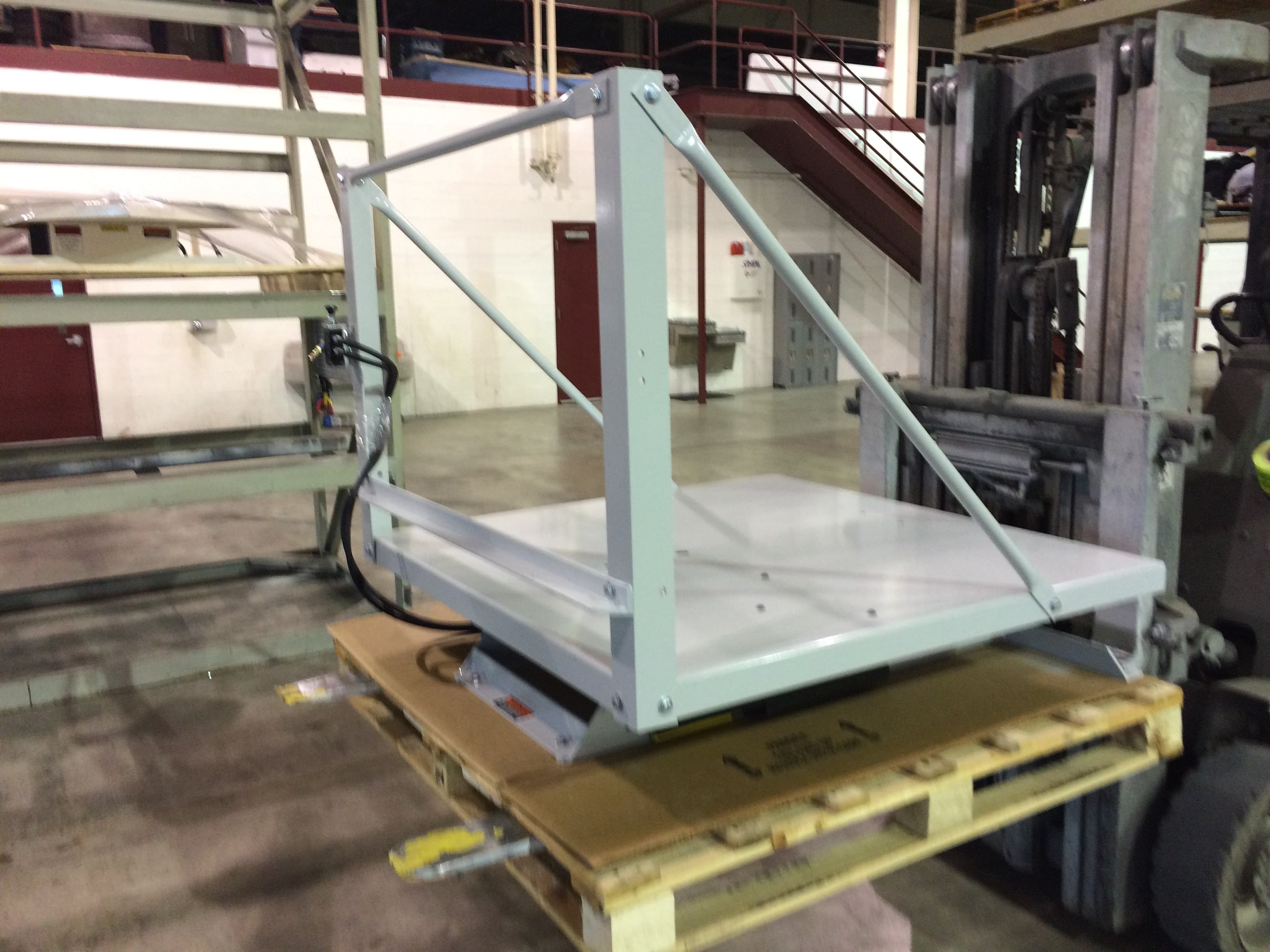

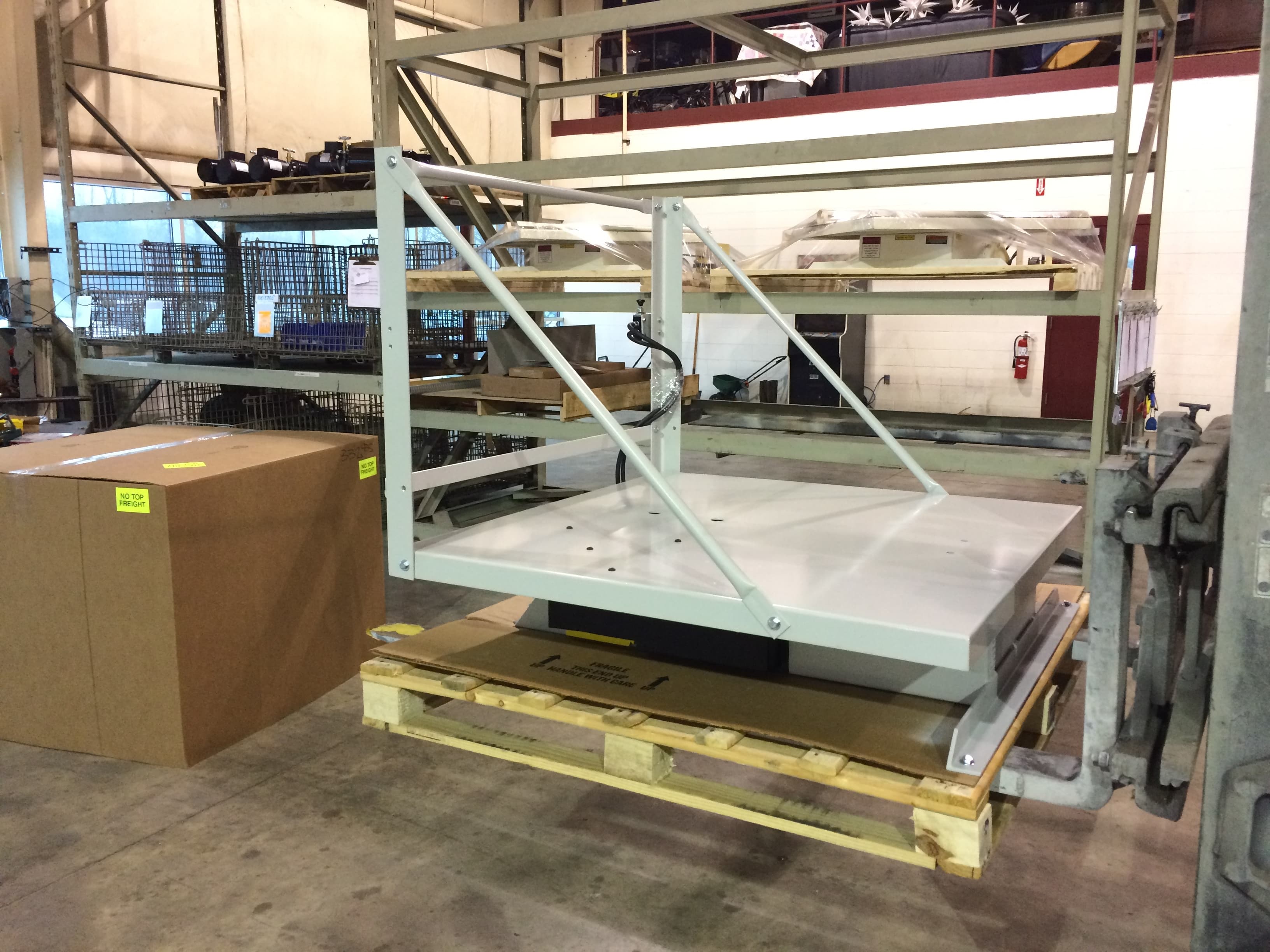

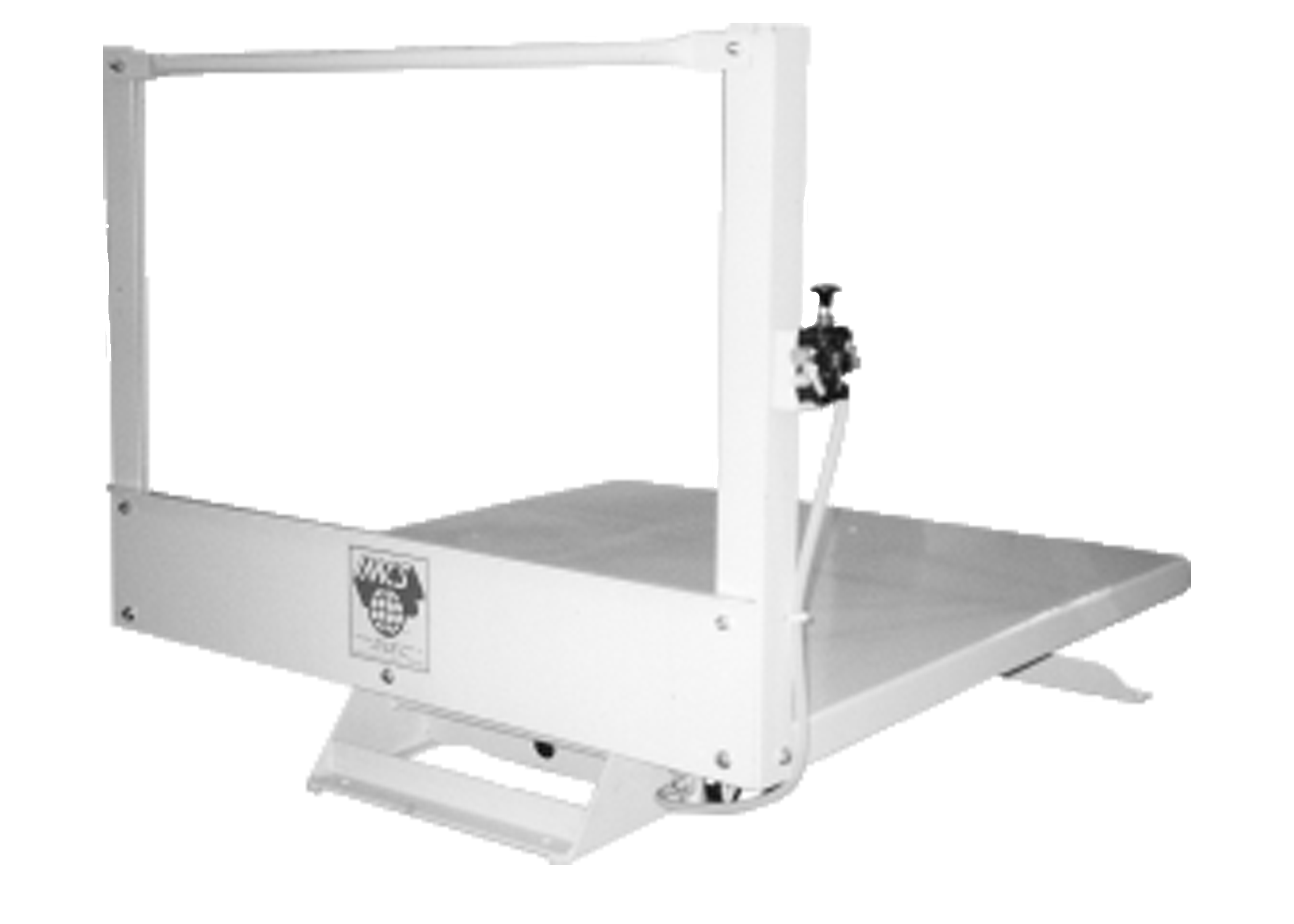

Low Profile Side Tilt Table
IMCS Side Tilt Container Tilters allow you to tilt containers to their side for ergonomic product packaging, nesting or removal. Our tilters operate by air, on as little as 60 p.s.i. Your choice of hand or foot pedal control along with an onboard regulator will allow for the controlled tilt of the table at a predetermined weight preventing material spillage. When you include our designed and patented safety locking device you will have the proper safety option to prevent the table from crashing to the ground in the event of unplanned air loss or airbag rupture. The low profile side tilt table can be constructed from aluminum, stainless steel, carbon steel or galvanized steel.
Standard Features
Automatic Tilt, Hand Control Valves, Pneumatic Activation, Safety Tilt Stop, Painted IMCS Dark Gray (RAL 7016)
Safety Enclosures are available for all IMCS Equipment
25-6011-000 Optional IMCS Safety Locking Device...............................................................$1,280.00 Prevents table from crashing to the ground in the event of unplanned interruption or loss of air supply. (U.S. Patent No. 5,431,112 & 5,572,933)
25-5003-000 Optional IMCS Tilt Table Vibrator Kit................................................................$545.00 Assists in directing hard to move material including powders to the pick-up area of the box.
Product Specifications
Detailed product information provides an accurate description of requirements, measurements, and functionality.
| Model No. | Platform Size | Load Capacity | Tilt Capacity | Tilt Angle | Load Height | List Price |
|---|---|---|---|---|---|---|
| 25-7000-000 | 44" x 44" | 2000 lbs | 1250 lbs | 52° | 9" | Call for Pricing |
| 25-7000-001 | 44" x 56" | 2000 lbs | 1250 lbs | 52° | 9" | Call for Pricing |
| 25-7002-000 | 44" x 44" | 3600 lbs | 2500 lbs | 52° | 9" | Call for Pricing |
| 25-7003-000 | 44" x 56" | 3600 lbs | 2500 lbs | 52° | 9" | Call for Pricing |
| 25-7009-001 | 44" x 44" | 2000 lbs | 1250 lbs | 52° | Floor Level | Call for Pricing |
